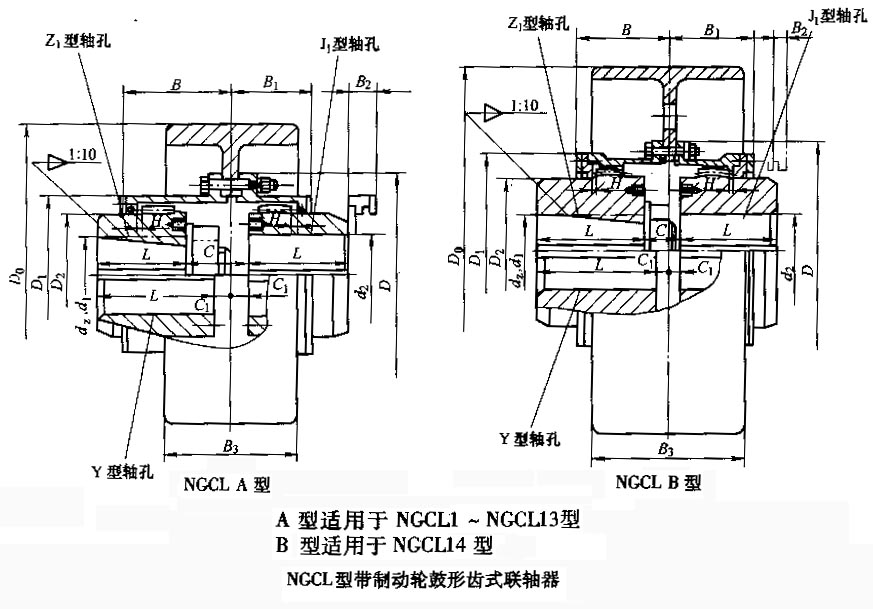

NGCL型帶制動輪鼓形齒式聯(lián)軸器的參數(shù)及主要尺寸：(JB/ZQ 4644-1997) mm
|
型號
|
公稱
轉(zhuǎn)矩
Tn
Nm
|
軸孔直徑
|
軸孔長度
Y,J1,Z1 |
DO
|
D
|
D1
|
C
|
C1
|
H
|
B3
|
質(zhì)量
kg |
|
dz,d1,d2
|
L
|
||||||||||
|
NGCL1
|
355
|
20-35
|
38-82
|
160
|
103
|
71
|
30
|
8
|
2.0
|
68
|
7.3
|
|
NGCL2
|
630
|
25-45
|
44-112
|
160
|
115
|
83
|
36
|
8
|
2.0
|
68
|
9.7
|
|
NGCL3
|
1000
|
28-56
|
44-112
|
200
|
127
|
95
|
41
|
8
|
2.0
|
85
|
15.2
|
|
NGCL4
|
1600
|
38-65
|
60-142
|
200
|
149
|
116
|
41
|
8
|
2.0
|
85
|
21.4
|
|
NGCL5
|
2800
|
40-75
|
84-142
|
250
|
167
|
134
|
48
|
8
|
2.5
|
105
|
33.1
|
|
NGCL6
|
4500
|
45-90
|
84-172
|
250
|
187
|
153
|
49
|
9
|
2.5
|
105
|
38.5
|
|
NGCL7
|
6300
|
50-100
|
84-212
|
315/(300)
|
204
|
170
|
53
|
9
|
2.5
|
132
|
61.8
|
|
NGCL8
|
9000
|
55-110
|
84-212
|
400
|
230
|
186
|
64
|
12
|
3.0
|
168
|
96.5
|
|
NGCL9
|
14000
|
60-130
|
107-252
|
500
|
256
|
212
|
71
|
13
|
3.0
|
210
|
151
|
|
NGCL10
|
20000
|
65-150
|
107-252
|
630/(600)
|
287
|
239
|
65
|
15
|
3.5
|
265
|
209
|
|
NGCL11
|
31500
|
70-170
|
107-302
|
710/(700)
|
325
|
276
|
77
|
16
|
3.5
|
298
|
300
|
|
NGCL12
|
45000
|
75-200
|
107-352
|
710/(700)
|
362
|
313
|
94
|
17
|
4.0
|
298
|
384
|
|
NGCL13
|
63000
|
150-220
|
202-352
|
800
|
412
|
350
|
88
|
18
|
4.5
|
335
|
544
|
|
NGCL14
|
100000
|
170-250
|
242-410
|
800
|
462
|
420
|
92
|
20
|
5.5
|
335
|
736
|
